Sub Switchboard

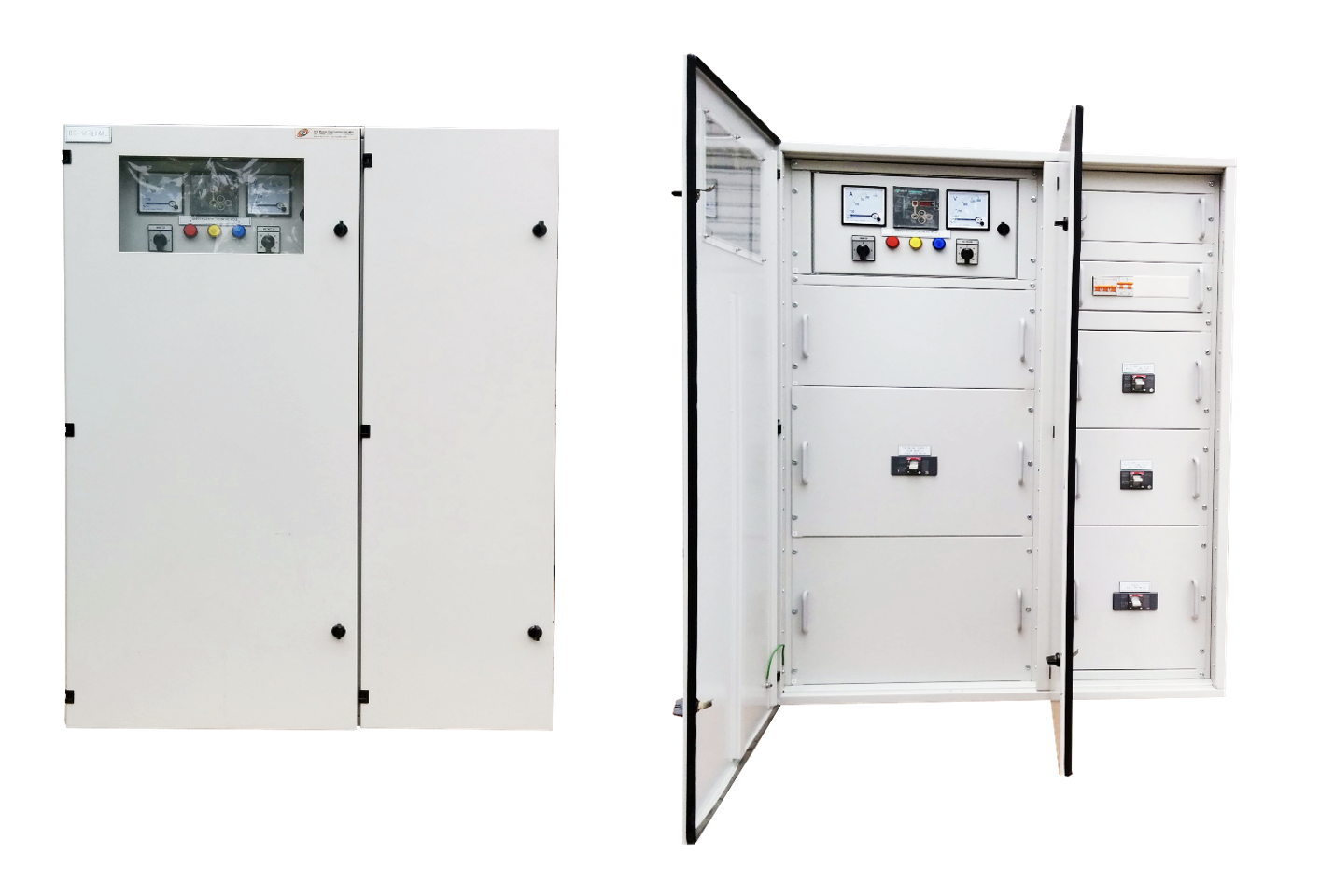

SRS SSB distributes power from the main switchboard to various sub-loads or distribution boards across a facility. It ensures a safe, organized, and efficient power distribution system, enabling easier preventive maintenance and troubleshooting.
< LV Switchgear
Sub Switchboard
Product Description
SRS SSB distributes power from the main switchboard to various sub-loads or distribution boards across a facility. It ensures a safe, organized, and efficient power distribution system, enabling easier preventive maintenance and troubleshooting.
General Specification
- Standard: IEC 60439-1 & -2, IEC 60529
- Rated Voltage: Up to 440V
- Rated Current: Up to 1000A
- Rated Frequency: 50Hz
- Fault Level: Up to 36kA
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 2B
- Degree of Protection (Indoor): Up to IP43
- Cable Entry: Top and Bottom
- Enclosure Type: Wall Mounted/ Floor Mounted
- Accessibility: Front
General Specification
- Standard: IEC 60439-1 & -2, IEC 60529
- Rated Voltage: Up to 440V
- Rated Current: Up to 1000A
- Rated Frequency: 50Hz
- Fault Level: Up to 36kA
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 2B
- Degree of Protection (Indoor): Up to IP 43
- Cable Entry: Top and Bottom
- Enclosure Type: Wall Mounted/ Floor Mounted
- Accessibility: Front
