Metering Panel

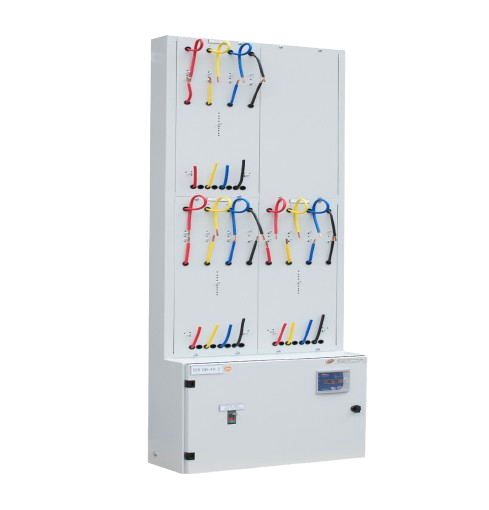

SRS Metering Panel is designed to houses consolidated energy meters from utility providers or end users for billing or monitoring purposes. It is available in various ratings and configurations to accommodate different quantities and types of energy meters.
< LV Switchgear
Metering Panel
Product Description
SRS Metering Panel is designed to houses consolidated energy meters from utility providers or end users for billing or monitoring purposes. It is available in various ratings and configurations to accommodate different quantities and types of energy meters.
General Specification
- Standard: IEC 60439-1 & -2, IEC 60529
- Rated Voltage: 415V/ 240V
- Rated Current: Up to 630A
- Rated Frequency: 50Hz
- Fault Level: Up to 25kA
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 2B
- Degree of Protection (Indoor): Up to IP43
- Cable Entry: Top and Bottom
- Enclosure Type: Wall Mounted
- Accessibility: Front
- Meter Type: Digital/ Analogue
General Specification
- Standard: IEC 60439-1 & -2, IEC 60529
- Rated Voltage: 415V/ 240V
- Rated Current: Up to 630A
- Rated Frequency: 50Hz
- Fault Level: Up to 25kA
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 2B
- Degree of Protection (Indoor): Up to IP 43
- Cable Entry: Top and Bottom
- Enclosure Type: Wall Mounted
- Accessibility: Front
- Meter Type: Digital/ Analogue
