SRS Power SKID Solutions

Product Description

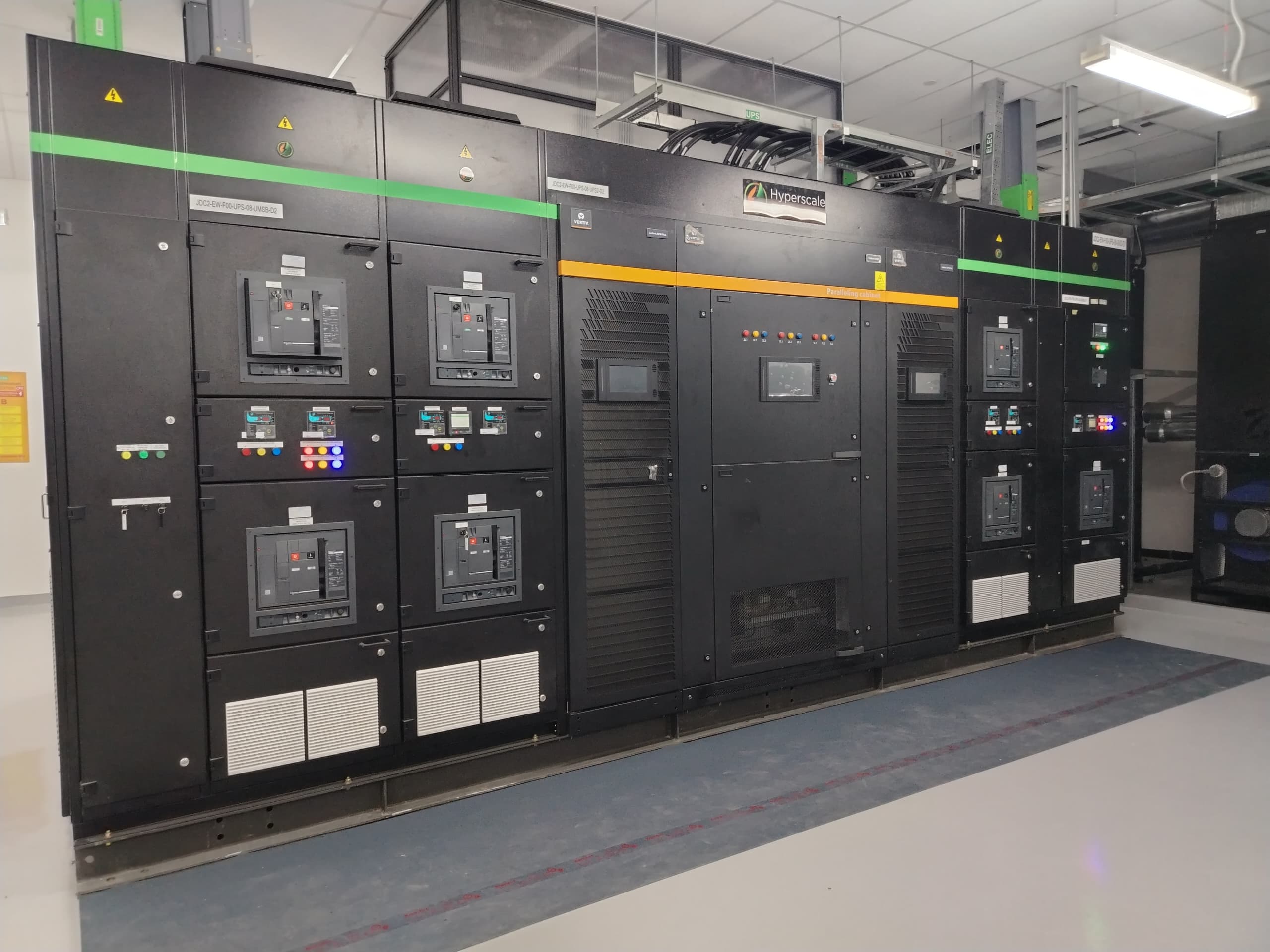

SRS Power SKID Solutions provide a fully integrated, factory prefabricated system that consolidates the LV Main Switchboard, UPS Input Board, UPS Output Board, UPS units and an optional Isolation Transformer into a single compact modular unit. Engineered to minimize on site coordination, shorten installation time and ensure consistent quality through complete prefabrication and thorough pre-delivery factory testing, this solution maximizes space efficiency and performance for modern data centers and other mission critical facilities.

General Specification

Standard: IEC 60439-1 & -2, IEC 61641
Standard: IEC 60529, IEC 61000-6-2 & -4
Standard: IEC 62040
Rated Voltage: Up to 440V
Rated Current: Up to 6300A
Rated Frequency: 50Hz
Rated Short Time Withstand Current: Up to 100kA, 3 Sec
Rated Impulse Voltage Withstand: 8kV

General Specification

Standard: IEC 60439-1 & -2, IEC 61641
Standard: IEC 60529, IEC 61000-6-2 & -4
Standard: IEC 62040
Rated Voltage: Up to 440V
Rated Current: Up to 6300A
Rated Frequency: 50Hz
Rated Short Time Withstand Current: Up to 100kA, 3 Sec

Rated Impulse Voltage Withstand: 8kV
Form of Segregation: Up to Form 4B
Degree of Protection (Indoor): Up to IP 43
Cable/ Busduct Entry: Top
Enclosure Type: Floor Standing
Accessibility: Front/ Back
