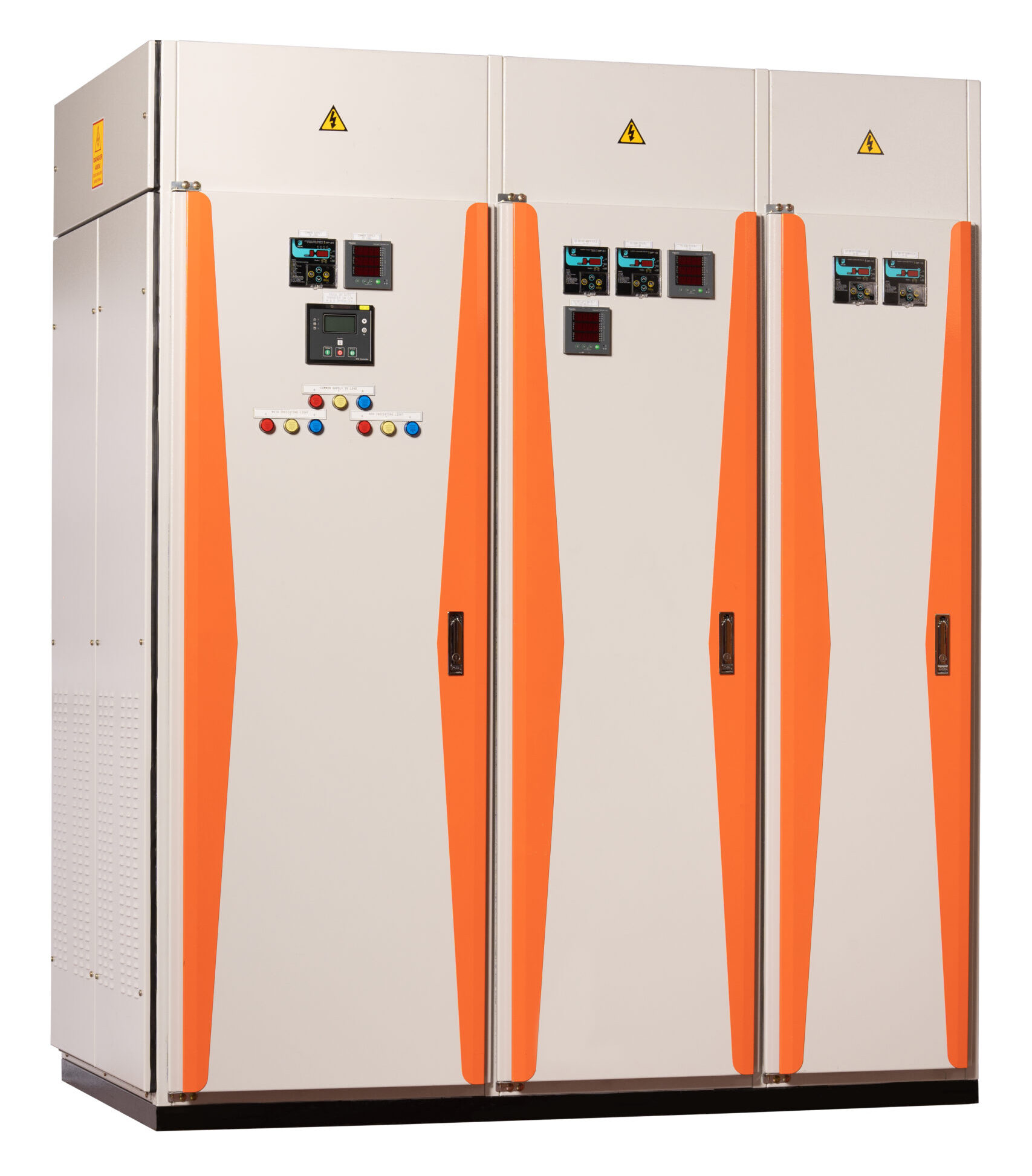

Essential Main Switchboard
SRS EMSB is designed to ensure seamless power continuity during loss of primary power, featuring auto and manual changeover with both close and open transition modes. Enclosed in an arc fault containment tested modular, it delivers enhanced safety, reliability, and performance for critical infrastructure and emergency power systems.
< LV Switchgear
Essential Main Switchboard
Product Description
SRS EMSB is designed to ensure seamless power continuity during loss of primary power, featuring auto and manual changeover with both close and open transition modes. Enclosed in an arc fault containment tested modular, it delivers enhanced safety, reliability, and performance for critical infrastructure and emergency power systems.
General Specification
- Standard: IEC 60439-1 & -2, IEC 61641
- Standard: IEC 60529, IEC 61000-6-2 & -4
- Standard: IEC 60947-6-1
- Rated Voltage: Up to 1000V
- Rated Current: Up to 6300A
- Rated Frequency: 50Hz
- Rated Short Time Withstand Current: Up to 100kA, 3 Sec
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 4B
- Degree of Protection (Indoor): Up to IP43
- Degree of Protection (Outdoor): IP54
- Cable Entry: Top and Bottom
- Enclosure Type: Floor Standing
- Accessibility: Front/ Back
General Specification
- Standard: IEC 60439-1 & -2, IEC 61641
- Standard: IEC 60529, IEC 61000-6-2 & -4
- Standard: IEC 60947-6-1
- Rated Voltage: Up to 1000V
- Rated Current: Up to 6300A
- Rated Frequency: 50Hz
- Rated Short Time Withstand Current: Up to 100kA, 3 Sec
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 4B
- Degree of Protection (Indoor): Up to IP 43
- Degree of Protection (Outdoor): IP 54
- Cable Entry: Top and Bottom
- Enclosure Type: Floor Standing
- Accessibility: Front/ Back
