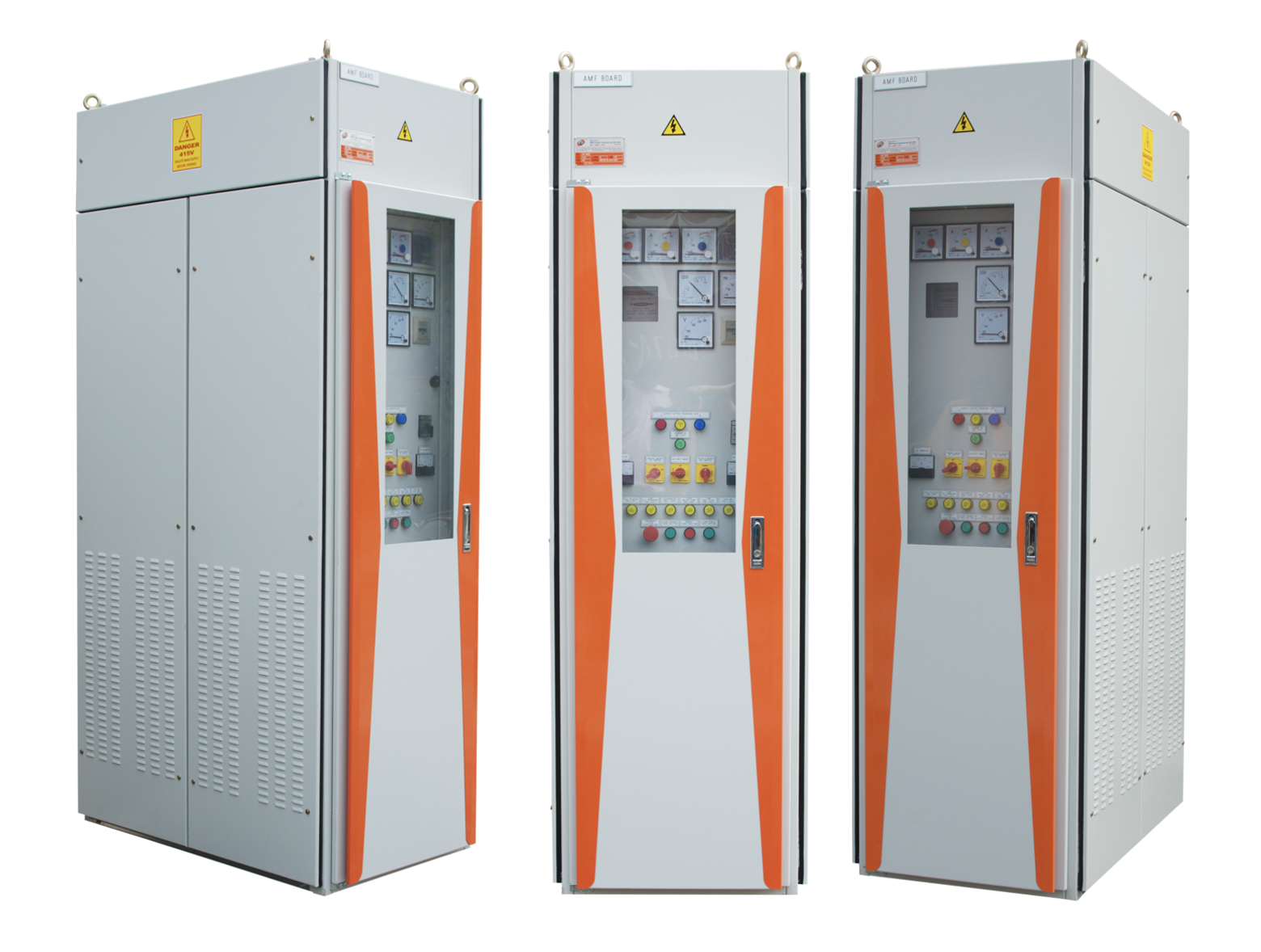

Auto Mains Failure Board
SRS AMF Board ensures seamless power continuity by automatically starting the generator during a mains power failure. Once utility power is restored, it safely transfer the loads back to the main supply and shut down the generator. Equipped with a smart generator controller, it provides precise control of generator startup and shutdown sequences in accordance with BOMBA requirements. Designed for reliable performance, the AMF board is ideal for critical applications that require essential backup power and automated switching.
< LV Switchgear
Auto Mains Failure Board

Product Description
SRS AMF Board ensures seamless power continuity by automatically starting the generator during a mains power failure. Once utility power is restored, it safely transfer the loads back to the main supply and shut down the generator. Equipped with a smart generator controller, it provides precise control of generator startup and shutdown sequences in accordance with BOMBA requirements. Designed for reliable performance, the AMF board is ideal for critical applications that require essential backup power and automated switching.
General Specification
- Standard: IEC 60439-1 & -2, IEC 61641
- Standard: IEC 60529, IEC 61000-6-2 & -4
- Rated Voltage: Up to 1000V
- Rated Current: Up to 6300A
- Rated Frequency: 50Hz
- Rated Short Time Withstand Current: Up to 100kA, 3 Sec
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 4B
- Degree of Protection (Indoor): Up to IP43
- Degree of Protection (Outdoor): IP54
- Cable Entry: Top and Bottom
- Enclosure Type: Floor Standing
- Accessibility: Front/ Back
General Specification
- Standard: IEC 60439-1 & -2, IEC 61641
- Standard: IEC 60529, IEC 61000-6-2 & -4
- Rated Voltage: Up to 1000V
- Rated Current: Up to 6300A
- Rated Frequency: 50Hz
- Rated Short Time Withstand Current: Up to 100kA, 3 Sec
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 4B
- Degree of Protection (Indoor): Up to IP 43
- Degree of Protection (Outdoor): IP 54
- Cable Entry: Top and Bottom
- Enclosure Type: Floor Standing
- Accessibility: Front/ Back
